Direct Steam Injection (DSI) Heaters/Hydroheaters

Hydro-Thermal delivers the perfect temperature every time with a full line of innovative on-demand steam injection heating, cooking, and fluid processing systems for a wide variety of industrial and sanitary applications. Heaters can be sold as individual units or full custom systems designed to your unique specifications – all ready to be incorporated immediately into your production environment.


Click on the product name below for more information.

INDUSTRIAL DSI HEATERS

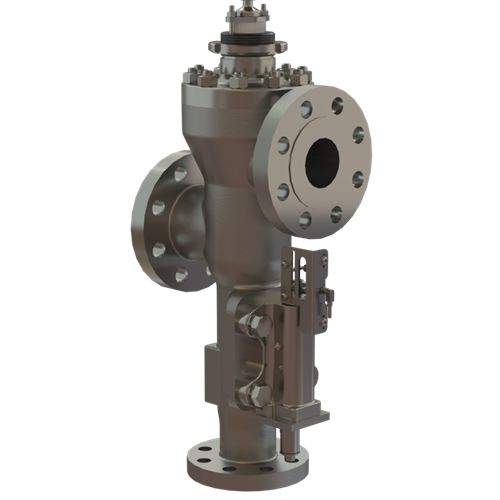

Inline Direct Steam Injection K-Series Hydroheater from Hydro-Thermal
HYDROHEATER K-SERIES®
(Also known as the Jetcooker™) Heats a wide range of liquids from water to heavy viscous slurries
Volume capability: 28 – 6,700 gpm [6- 1,522 m3/hr]
Uses: Pulp and paper applications, biofuels, ethanol and starch conversion, large volume water, anaerobic digestion, cooking, and more
Model Numbers: K610, K612, K613, K614, K615, K616, K617, K510, K511, K512, K513, K514, K515, K516, K517, K410, K411, K412, K413, K414, K415, K416, K417
Inline M-Series Water Heater from Hydro-Thermal
HYDROHEATER M-SERIES®
Heats a wide range of liquids from water to heavy viscous slurries
Volume capability: 1 – 138 gpm [0.2 – 31 m3/hr]
Uses: Pulp and paper applications, biofuels, ethanol and starch conversion, large volume water, anaerobic digestion, cooking, and more
Model Numbers: M101, M103, M104, M105, M106, M107, M108, M109, M110

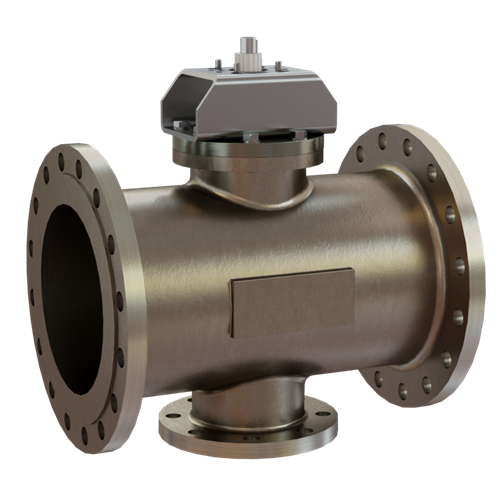

Straight Through Direct Steam Injection Heater
Optimized straight-through heater, handles heavy slurries, medium consistency pulp stock or higher solids content.
Volume capability: 5 up to 25,000 gpm [1 up to 5,678 m3/hr]
Uses: Medium consistency pulp stock, bleaching, anaerobic digestion, and other fibrous slurries
Model Numbers: S101, S202, S203, S204, S206, S208, S210, S212, S216

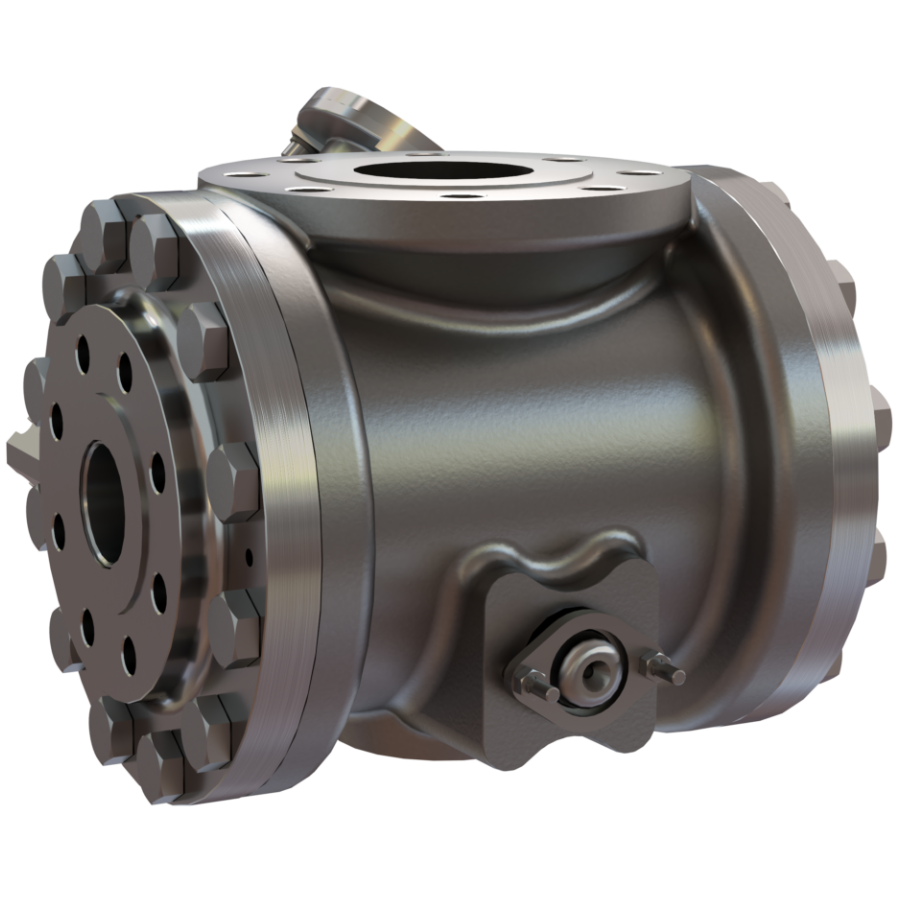

Non-Obstructing Water Heater for Rough Materials
Rugged, able to handle abrasive materials (such as sand or grit) or large particulate/fibrous materials
Volume capability: 30 up to 3,035 gpm [6.8 up to 689 m3/hr]
Model Numbers: NOH2, NOH4
Custom Advanced Heating Skid Systems from Hydro-Thermal
ATTEC or Advanced Fluid Heating Skids are completely customized solutions that are designed, built and installed to individual specs. Hydro-Thermal will provide necessary components including piping and control systems. These skids can be used for processing any type of slurry including starch cooking, food manufacturing, chemical processing and everything in between

SANITARY DSI HEATERS

3A Certified Inline Hydro Water Heater
Patented 3A certified heater manufactured in stainless steel(s), heats a wide range of liquids from water to heavy viscous slurries
Volume capability: 1 up to 180 gpm [.2 up to 41 m3/hr]
Uses: Food and beverage cooking, cheese and dairy production, sauces, and pharmaceutical fluids
Model Numbers: A304/A204/A104, A206/A106, A307/A207, A208/A108, A209/A109, A210/A110
3A, CE & FDA Certified Direct Steam Injection Cooking System
Sanitary 3A, CE certified and FDA compliant, stainless steel system for starches, slurries and high solid products
Volume capability: 5 up to 200 gpm [1.1 up to 45 m3/hr]
Uses: Soups, sauces, beverages, dairy based products, tomato based products, starch based products, high or low shear products, pasteurization, batch or continuous processing.
3A, EHEDG, & FDA Certified Sanitary Cooking Skid
Compact and fully sanitary cooking skid that helps products achieve finished recipe results, pasteurization or blended emulsification through 3-A, EHEDG and FDA certifications.
Minimum Volume capability: 3 up to 22 gpm [0.7 up to 5.0 m3/hr]
Maximum Volume capability: 30 up to 255 gpm [6.8 up to 57.9 m3/hr]
Uses: Soups, sauces, slurries, beverages, dairy-based products, tomato-based products, starch-based products, high or low shear products, blended emulsification, pasteurization, batch or continuous processing


WATER ONLY DSI HEATERS

Inline Water Heater That Utilizes Direct Steam Injection
Water only applications
Volume capability: 2 up to 1,350 gpm [.5 up to 306 m3/hr]
Uses: Tank heating/filling, washdown, clean-in-place (CIP), sanitation, clean-up, can topping, cook pots, chemical reactors
Model Numbers: H310, H320, H330, H340, H360, H2010, H2015, H2020, H2030, H2040
External Hot Water Heating Skid System from Hydro-Thermal
For hot water only, utilizes the EZ Heater®
Volume capability: 2 up to 1,350 gpm [.5 up to 306 m3/hr]
Uses: Tank heating/filling, washdown, clean-in-place (CIP), sanitation, clean-up, can topping, cook pots, chemical reactors
Model Numbers: H310, H320, H330, H340, H360, H2010, H2015, H2020, H2030, H2040

HTC TECHNOLOGY

Sanitary & Industrial Linear Actuator
The Hydrive™ Linear Actuator (HLA) is a highly-engineered actuator designed for a wide range of sanitary and industrial applications. Lean, compact, and connected, the HLA expands what is possible with actuators today. Smart and Connected: Hydrive Connect is simple actuator controls in the palm of your hand. The Hydrive Connect app can be used to adjust the position, monitor live performance, and retrieve historical data for deeper analysis.
Automatic flow controller for Hydroheaters from Hydro-Thermal
Automatic product flow technology that adjusts a Hydroheater to maintain constant pressure drop across the unit.
Uses: Local control panel with inputs for differential pressure transmitter signal, pressure drop set point and system enable (Auto/Manual).
Model Numbers: Any K610 - K617 Hydroheater installations (also compatible on older K510 - K515 models)
Parts are available for all discontinued heater models. New heater availability will vary. Please contact Hydro-Thermal for more information.

ADDITIONAL OPTIONS

Some of Hydro-Thermal’s heaters utilize a Hydrive Linear Actuator (HLA) with a built-in positioner. Other heaters utilize a Fisher reverse-acting diaphragm actuator (“fail close”), which are generally coupled with a filter/regulator and a Fisher DVC 2000 or a DVC 6200 positioner that converts a 4-20 mA DC input signal to pneumatic output signal to the actuator. For high vibration applications, remote mount positioners are available, depending on unique processing conditions or upon request. Please contact Hydro-Thermal for more details.

The Industrial Hydroheater is very robust and reliable, and can be further enhanced as needed for heating abrasive fluids. For many applications, a weld overlay and enriched material in key areas is sufficient. Some applications such as slurries with sand content require additional overlays outside the basic weld overlay. This technique has greatly increased the heater’s internal component lifespan. Other fluids have required more extensive modifications. In oil sands froth heating applications, for example, a combination of a weld overlay as well as the use of hard, abrasive resistant materials is recommended. For specific requirements for your application, please contact Hydro-Thermal directly.

All Industrial Hydroheaters include a combining tube. An extended combining tube may be recommended for a large T (high temperature rise). Please contact Hydro-Thermal for more details.
