K-Series Hydroheater® Standard Skid
K-Series Hydroheater® Standard Skid

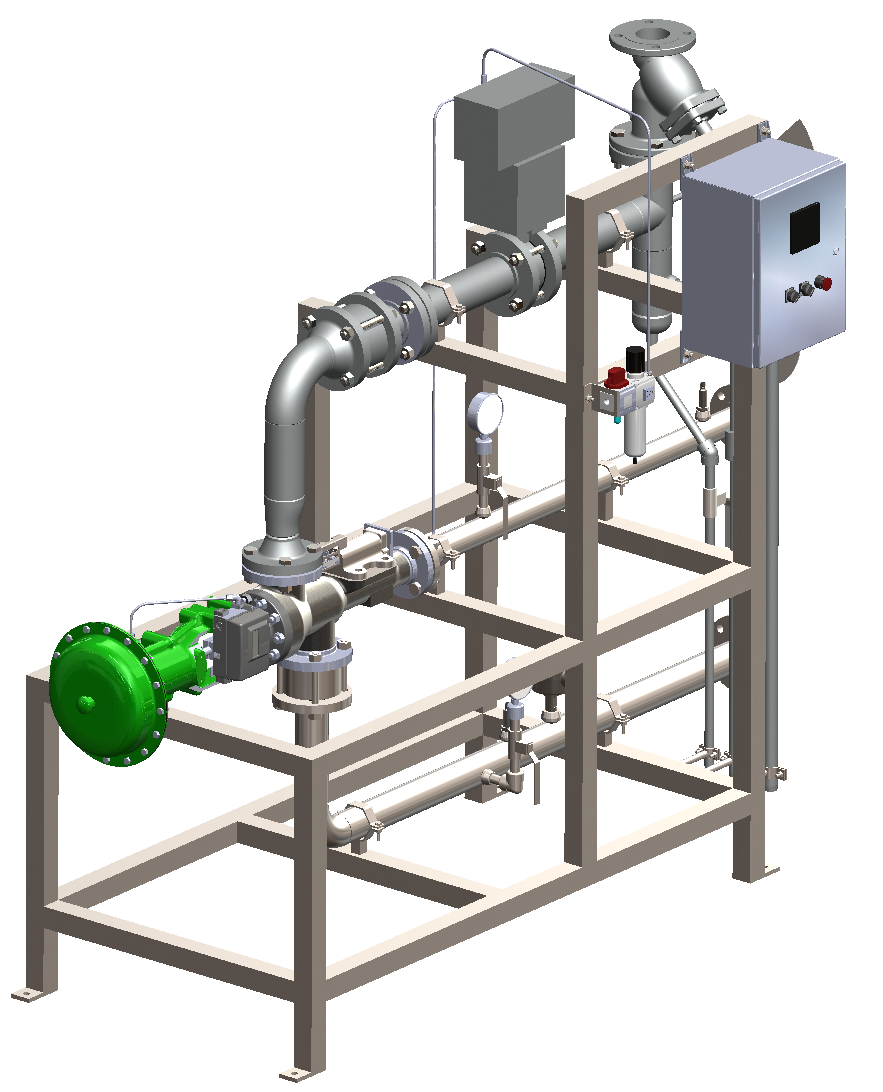

The K-Series Hydroheater® standard skid is an integrated, compact pre-engineered heating system, utilizing the direct steam injection Hydroheater®. All necessary components needed for optimal operation and precise temperature control are included; simply connect to plant utilities: steam, process fluid, air and power.
Pressure & Temperature
- Max Pressure – 300 PSIG / 20.7 Barg
- Max Temperature – 450°F / 232°C
Flow Turndown
- 3:1 turndown ratio (Water)
- 2:1 turndown ratio (Viscous Slurries)
Connection Types
- ANSI Class 150 & Class 300
- DIN PN16, PN25, PN40
- Other custom connections available
Materials of Construction
- 316 Stainless Steel
- Other custom materials available
- Patented internal design allows for precise control of steam and turn-down adjustability
- Self-cleaning design eliminates scale build-up and product fouling
- Steam flow control creates consistent, instantaneous mixing and steam velocity while eliminating hammer and vibration
- Choked flow technology accurately meters steam for precise temperature control
- Available in 5 standard sizes with ratings to 2,500 GPM [568 m³/hr]
- Highly compact to meet space constraints
- Pre-designed and partially stocked for short lead time
- Plug-and-play style and custom designs available
- Starch Cooking
- Biofuels
- Anaerobic Digestion
- Starch Conversion
- General Water Heating
- Chemical
- Pharmaceuticals (Personal Care & Bio Tech)
- Energy & Utilities (Oil & Gas)
- Starch to Sugar
- Paper & Pulp
- Renewable Fuel (Ethanol)
Other
- Mining (Processing Facilities)
- Metal
- Automotive
Maximize Your Process Potential
Don’t miss out on the benefits of ultra-precise, efficient, and reliable steam injection heating and cooking systems. Contact us today.
