Hydroheater®/Jetcooker™

The Industrial Jetcooker™ is perfect for precisely heating liquids and slurries across varying viscosities and solids. Its unique combining tube adjustor allows easy control of process shear, making it ideal for optimal starch conversion.

Request a Quote

Category:
Share:

Description

Categories: Industrial DSI Heaters

Model Numbers: K610, K611, K612, K612, K614, K615, M206, M208

Pressure & Temperature

  • Max Pressure – 300 PSIG / 20.7 Barg
  • Max Temperature – 450°F / 232°C

M-Series Hydroheater

  • Max Pressure – 300 PSIG / 20.7 Barg
  • Max Temperature – 450°F / 232°C

Flow Turndown
K-Series Hydroheater

  • 3:1 Turndown Ratio (Water)
  • 2:1 Turndown Ratio (Viscous Slurries)

M-Series Hydroheater

  • 3:1 Turndown Ratio (Water)
  • 2:1 Turndown Ratio (Viscous Slurries)

Connection Types

  • ANSI Class 150 & Class 300
  • DIN PN16, PN25, PN40
  • Other custom connections available

Materials of Construction

  • 316 Stainless Steel
  • Other custom materials available

K-Series 2 1/2″-10″ / DN65-DN250

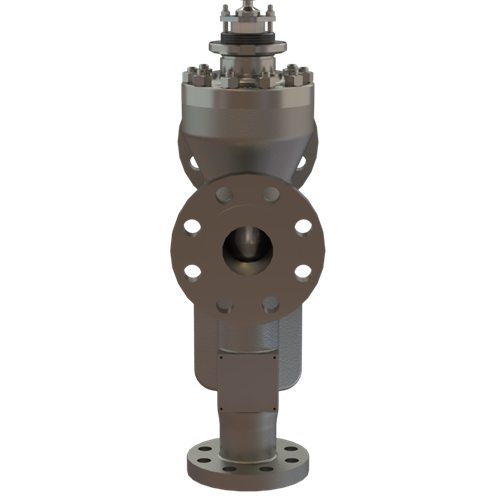

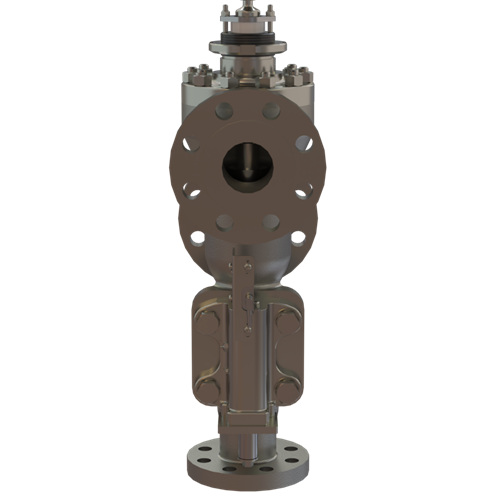

K610
K611
K612
K613
K614
K615
Steam Inlet
2.5 in. / 63.5 mm.
3.0 in. / 76.2 mm.
3.0 in. / 76.2 mm.
4.0 in. / 101.6 mm.
6.0 in. / 152.4 mm.
8.0 in. / 203.2 mm.
Process Inlet
2.5 in. / 63.5 mm.
3.0 in. / 76.2 mm.
3.0 in. / 76.2 mm.
4.0 in. / 101.6 mm.
6.0 in. / 152.4 mm.
8.0 in. / 203.2 mm.
Process Outlet
2.0 in. / 50.8 mm.
2.0 in. / 50.8 mm.
2.5 in. / 63.5 mm.
4.0 in. / 101.6 mm.
6.0 in. / 152.4 mm.
8.0 in. / 203.2  mm.
Min. Flow (GPM/m3/hr)
28.0 / 6.4
40.0 / 9.1
40.0 / 9.1
120.0 / 27.3
300 / 68.1
400.00 / 90.9
Max. Flow (GPM/m3/hr)
174.0 / 39.5
402.0 / 91.3
402.0 / 91.3
750,0 / 170.3
1,800 / 408.8
2,500.00 / 567.8
Weight
160 lbs. / 72.6 kg.
297.0 lbs. / 134.7 kg.
305.0 lbs. / 138.4 kg.
447.0 lbs. / 202.8 kg.
704.0 lbs. / 319.3 kg.
934.0 lbs. / 423.7 kg.

Larger sizes are available upon request – contact the Hydro Thermal team for more information.

M-Series 3/4″-2 1/2″ / DN20-DN65

M206
M208
Steam Inlet
1.0 in. / 25.4 mm.
1.5 in. / 38.1 mm.
Process Inlet
1.0 in. / 25.4 mm.
1.5 in. / 38.1 mm.
Process Outlet
0.5 in. / 12.7 mm.
1.0 in. / 25.4 mm.
Min. Flow (GPM/m3/hr)
0.6 / 2.4
1.5 / 6.5
Max. Flow (GPM/m3/hr)
5.7 / 25.0
10.4 / 46.0
Weight
48.0 lbs. / 22.0 kg.
72.0 lbs. / 33.0 kg.

> Optional Components

> Hydroheater®/Jetcooker™ Brochure

> M-Series Product Overview

> Flagship Brochure

  • Precise temperature control (+/- 1 degree) helps you reach and hold your desired set point
  • Uniform heating of water, liquids, and slurries
  • Process flexibility and stability ensured through a detailed design and engineering process
  • Patented internal design allows for precise control of steam and turn-down adjustability
  • Self-cleaning design eliminates scale build-up and product fouling
  • Steam flow control creates consistent, instantaneous mixing and steam velocity while eliminating hammer and vibration
  • Choked flow technology accurately meters steam for precise temperature control
  • Starch Cooking
  • Biofuels
  • Anaerobic Digestion
  • Starch Conversion
  • General Water Heating

Heating sludge, grit, or solids-laden wastewater?

For abrasive or high-solids streams in wastewater treatment, the NOH™ Non-Obstructing Heater uses an unrestricted straight-tube flow path that heats sludge without plugging or fouling, reducing maintenance and downtime.

Explore the NOH for wastewater

  • Chemical
  • Pharmaceuticals (Personal Care & Bio Tech
  • Energy & Utilities (Oil & Gas)
  • Starch to Sugar
  • Paper & Pulp
  • Renewable Fuel (Ethanol)

Other

  • Mining (Processing Facilities)
  • Metal
  • Automotive

Maximize Your Process Potential

Don’t miss out on the benefits of ultra-precise, efficient, and reliable steam injection heating and cooking systems. Contact us today.
